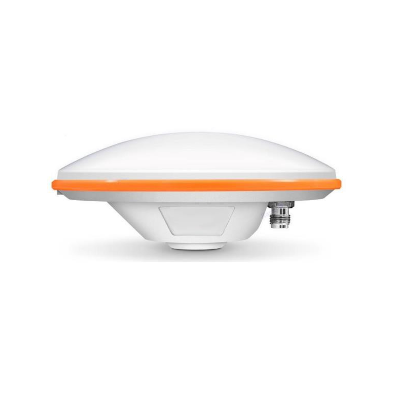

ByNav BY500 Tri-band Survey-Grade GNSS Antenna (L1, L2 & L5 Bands, 152mm Diamter, RTCM Latency <=5ns)

ByNav BY500, a tri-band survey grade GNSS antenna engineered for superior location accuracy. Compatible with a wide array of GNSS receivers from dual to tri-frequency, it supports L1, L2, and L5 frequencies for comprehensive satellite coverage.

Key Features:

• Triple-Band Support: Delivers extensive frequency coverage across L1, L2, and L5 bands, enhancing location precision.

• Exceptional Precision: Features a compact 152mm diameter with a minimal phase center error of +/- 2mm for accurate positioning data.

• Ultra-Fast Data Reception: Boasts RTCM latency of ≤5ns, perfect for real-time data applications requiring high precision.

• Reliable in Extreme Conditions: Designed to operate reliably in temperatures from -40°C to +85°C, ensuring consistent performance.

Technical Specs:

Dimension (mm):

Package content:

• BY500 antenna main unit -TNC(female)
• TNC(male) to TNC(male) adatper cable (5 meter)
• TNC(female) to MMCX(male) adatper cable (60 cm)
