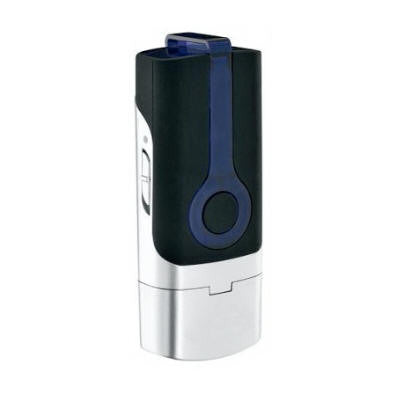

Canmore GT-730FL-S GPS data logger

Canmore GT-730FL-S GPS data logger

$64.00 USD
$64.00 USD
Sale Sold out

Volume Discount Table

Minimum Qty Discount
5 + 3% off
10 + 4% off
50 + 5% off
100 + 7% off

Canmore GT-730FL-S GPS data logger - SiRF IV edition. (48 channels, 256K waypoints, Ultra Low power consumption)

The GT-730FL-S is optimized for good performance and low cost. Its short start-up time, fast signal acquisition, having fast time-to-first-fix and high sensitivity, the GT-730FL-S offers good navigation performance even in urban canyons.

Features:

  • 48 track verification channels
  • SIRF-IV low power chipset
  • Tracking sensitivity -163dBm
  • Acquisition sensitivity –147dBm
  • Cold start < 34 seconds
  • Hot start < 1sec under open sky
  • 2.5m CEP accuracy
  • Support SAGPS function
  • SBAS (WAAS, EGNOS) support
  • 2M Bytes flash memory for data logging, with 16M-Bit binary data per record that stores up to 256K data records
  • Log data can be exported to mapping software suchas Google Earth and TrackMaker
  • Logging data interval programmable: by time or distance
  • Data tag (start, stop point) can be set by user
  • Ultra low power consumption: over 17/56 hours continuous use by 450mAh battery
  • USB version 1.1/2.0 interface
  • Easy-plug-in Notebook
  • Super mini size:77.48x28x17.77 mm



TECHNICAL SPECIFICATIONS

Receiver Type 48 parallel channels, L1 C/A code
Accuracy Position 2.5m CEP
Velocity 0.1m/sec
Startup Time < 1sec hot start
(average) < 34sec cold start
Signal Reacquisition 1s
Sensitivity -147dBm acquisition
-163dBm tracking
Update Rate 1Hz standard
(5Hz/10Hz special order)
Dynamics 4G (39.2m/sec2)
Serial Interface USB
Protocol NMEA-0183 V3.01
GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG, GPZDA
4800/9600/19200/38400 baud, 8, N, 1
Datum Default WGS-84
User definable
LED Indicator Blue - GPS / Datalogger status
Red - Charging battery
Green - Battery low
Input Voltage 5V DC
Input Current Typical 26mA tracking (1Hz standard version) & <every 5 second to record point
Typical 8mA tracking (1Hz standard version) & <every 7 second to record point
Dimension 77.48mm L x 28mm W x 17.77mm H
Weight: 34g (Including Battery)

Package content:

  • GPS USB Dongle receiver/Data Logger Device x 1
  • CD manual ,driver & software CD x 1
  • Lanyard x 1
