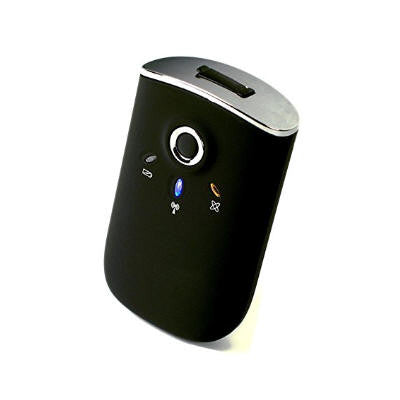

Canmore GT-750F(L) Bluetooth GPS Receiver Data Logger

Canmore GT-750F(L) Bluetooth / USB Dual Interfaces GPS Receiver & Data Logger (SiRF 4 Low Power Consumption GPS Chipsetset, WAAS, A-GPS, 250K Waypoints, Bluetooth v2.0 Connects up to 10 meters)

The GT-750F(L) is a single board of Bluetooth-GPS receiver for customers who require easy system
integration and minimal development risk.

The GT-750F(L) is optimized for good performance and low cost. Its 48 parallel channels and SiRF_IV
search bins provide short start-up time and fast signal acquisition. Having fast time-to-first-fix and high
sensitivity, the GT-750F(L) offers good navigation performance even in urban canyons.

The GT-750F(L) is capable of keeping up to 256,000 records or positions, including longitude, latitude,
speed, UTC, and tag data.The location histories can be exported to mapping software such as Google
Earth or TrackMaker.

Satellite-based augmentation systems, such as WAAS and EGNOS, are supported to yield improved
accuracy.

The onboard patch antenna provides good signal reception. It provides fast satellite signal acquisition
and short startup time. Acquisition sensitivity of –155dBm and tracking sensitivity of –160dBm offers good
navigation performance even in urban canyons having limited sky view. Class 2 Bluetooth offers up to 10
meters of wireless operation with Bluetooth-enabled devices such as PDA, Tablet-PC or Smart mobile
phone.

Features:

• Acquire and track 48 satellites simultaneously

• SiRF-IV simultaneous time-frequency search bins
• Signal detection better than -163dBm
• Reacquisition sensitivity –155Bm
• Cold start < 30 seconds at –147dBm
• Hot start < 1sec under open sky
• 2.5m CEP accuracy
• SBAS (WAAS, EGNOS) support
• 2M Bytes flash memory for data logging, stores up to 250,000 data records
• Log data can be exported to mapping software such as Google Earth and TrackMaker
• Logging data interval programmable: by time or distance
• Bluetooth version 2.0 compliant
• Compatible with Bluetooth devices with Serial Port Profile (SPP)
• Support G-mouse function via USB cable
• Charger circuitry and battery socket for N3650 Li-ION battery
• More than 20 hours of operation

• Dimension:73x44x21 mm

Package Content:
Bluetooth GPS receiver X 1
N3650 Battery X 1
Car Charger X 1
AC Adapter X 1 (Option)
Skid proof Disk X 1
User manual X 1

Screenshot of the Canway software comes with the package.

Documents:

- Canmore GT-750F(L) user manual  - Canmore GT-750F(L) data sheet



Driver Downloads:

- USB Drivers (windows)



Software Downloads:

- CanWay Software  - CanWay Software Map Selector  - CanWay Software Tour Planner  - GPSViewer
