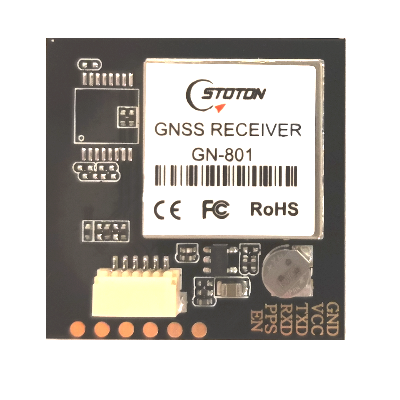

GN-801 GNSS Receiver Module (GPS+GLONASS, u-blox 8030-KT chipset, NMEA 0183, UART/TTL Interface, built-in antenna)

Technical Specs:

• u-blox 8 UBX-M8030-KT chipset

• Frequency:

• Accepts the signals of up to 72 satellites at the same time

• Supports AssistNow online/offline,

SBAS (WAAS, EGNOS, QZSS and MSAS)

• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG

• Defaul utput protocol(optiona , USB)

• Baud rate can be se 00.115200.38400.57600)

• Update rate:

• Sensibility max. –167 dBm

• IPX6 protection class

• Magnetic, non-slip on the bottom

• LED-indicator for GPS-status

• Operating temperature: -35 °C ~ 85 °C

• Power supply: 5V Volt

• Current consumption: max. 45 mA

• Cold start in ca. 26 seconds

• Hot start in ca. 1 second

• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and

2 m CEP with SBAS

• Dimensions (LxWxH): ca. 30 x30*8.2mm
