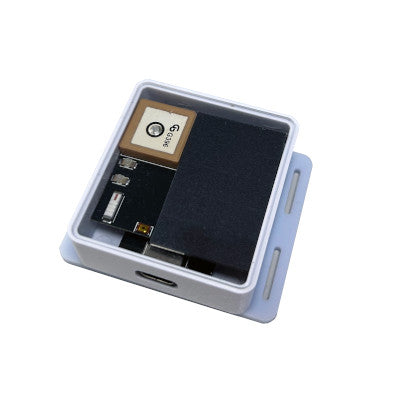

i-gotU G6S Solar Wireless GNSS Data Logger

Introducing the i-gotu G6S Solar Wireless GNSS Receiver: Revolutionizing Animal Tracking.

The i-gotu G6S Solar Wireless GNSS Receiver is a cutting-edge device designed to provide reliable and continuous geo tracking for livestock, land mammals, and other animals. With its intelligent power management system, motion sensing capabilities, solar panel power backup, and customizable app settings, this device offers unparalleled performance and convenience. Compatible with both Android and iOS smartphones, it allows you to effortlessly view the real-time GPS position of your tracked subjects on a map. For extended data transmission range, you can connect the G6S to the long-range GW1 wireless gateway, enabling data transmission up to 2 km.

This remarkable device serves as a game-changer for various fields, including animal behavior studies, migration tracking, habitat conservation, and ecological environment research. Its affordable price and innovative features make it an ideal solution, particularly for projects with limited budgets.

Gone are the days of cumbersome tracking equipment and restricted research areas. Our advanced solution utilizes Bluetooth long-range technology and mobile phone networks to wirelessly transmit data to the GW1 data collector. From there, you can effortlessly download the data to your mobile phone and wirelessly transfer it to a PC for further analysis. This eliminates the need for heavy instruments and allows researchers to conduct studies in the wild more easily. The solar-powered design of the GW1 ensures continuous operation, enabling it to be deployed at water sources, bird nests, or any frequented locations.



Hardware Features:

Dimensions	52 x 46 x 17 mm (include laser cut flange)  (PCBA with Battery & Solar Panel: 37 x 35 x 11 mm)
Weight	19.0 g (PCBA with Solar Panel & Battery), 37 g (total with plastic case)
Wireless Operating Range	Up to 100m (connect to smartphone)(Standard mode)  Up to 2 km (line of sight, connect with GW1 gateway) (Long range mode)
Radio Spectrum	2400 MHz to 2483.5 MHz
Recording Capacity	260,000 GPS waypoints for 2.5 years recording with 5-mins logging interval
Power System	Energy harvesting solar panel with 380 mAh lithium battery for use within 10~20 days w/o any sunlight. Power-on/Re-logging upon detection of sunlight
PC Interface	Micro USB port for charging, data download and device settings
Motion Sensor	Ultra low power motion sensor to start power saving when inactive
Water Resistant	IP68 waterproof plastic case
Operating Temperature	-20 C to +50 C
Power Consumption	Ultra low power with GPS position broadcasting enabled  (0.65 mW/1 hour interval, 1.95 mW/10 min interval, 3.5 mW/3 min interval)

Software Features:

Wireless Connection	Standard mode or Long Range mode
Logging Interval (LOGINT)	From 1 minute to 24 hours
Flexible Scheduled Logging	4 independent LOGINT per day, 7 x 4 independent LOGINT per week
Flexible Wireless Settings	4 scheduled ON/OFF per day, 7 x 4 scheduled settings per week
GPS Position Broadcasting	Advertising interval from 1 sec. to 10 sec.
Supported Platform	PC via USB connection.  Smartphone App (Android & iOS) via wireless connection
Group Movement Analysis	via PC application (i-gotU GPS software)
Device Position Discovery	via mobile app, including distance, direction and GPS info. on map
Keep Alive on Low Battery	Keep working under various battery conditions by adjusting GPS LOGINT
GPS Information Recorded	Time, latitude, longitude, altitude, GPS satellite detected info. and battery level

Duo-Mode Bluetooth:

The G6S has Duo-mode Bluetooth, which can be set as "Standard Mode" and "Long Range Mode."
Standard Mode:  the transmission range is up to 100 meters.
Long Range Mode: the transmission range extends up to 2 kilometers. (GW1 gateway is required.)

Overcoming Tracking Challenges:

Traditional animal tracking methods face significant challenges when it comes to remote and wild environments. Reliance on cellular networks or satellite internet for location data transmission often proves impractical due to limited coverage and high costs. However, our standalone tracking solution overcomes these obstacles, making it highly suitable for challenging terrains. Say goodbye to dependence on cellular networks or satellite internet and embrace the freedom to explore even the most remote areas.

Unleashing the Power of Data:

While conventional tracking devices suffer from limited battery life and long logging intervals, the i-gotu G6S offers unparalleled flexibility. With the option to remove the solar panel for nighttime tracking or replace the batteries as needed, you can achieve more frequent logging intervals. This feature provides researchers with a wealth of valuable data, enabling them to uncover hidden behaviors and gain deeper insights into animal habits.

Groundbreaking Tracking by adding a GW1 Gateway:

Tracking animals has never been easier. Leveraging Bluetooth long-range technology and mobile phone networks, our cost-effective solution wirelessly transmits data to the GW1 data collector. You can effortlessly download this data to your mobile phone and wirelessly transfer it to a PC for further analysis. Whether you're studying terrestrial creatures or avian species, the i-gotu G6S simplifies research in the wild, making heavy instruments a thing of the past. Deploy the GW1 at strategic locations such as watering spots or bird nests and enjoy uninterrupted tracking thanks to its solar-powered design.

Near-Real or Real-Time Tracking:

With Bluetooth broadcast capabilities, the i-gotu G6S can even send back the last recorded location to the GW1 gateway. By connecting your mobile phone to the GW1, you gain instant access to near-real or real-time tracking data from devices within a 2 km range. This feature empowers you to make informed decisions on-the-go, providing valuable insights and facilitating efficient monitoring of your tracked subjects.

Technical specifications:

Dimension: 37 x 35 x 11 mm (PCBA+Battery+Solar Panel) 52 x 46 x 17 mm (include laser cut flange: )

Weight (without /with case): 19.0 g / 37 g

Water Resistant: IP68 waterproof plastic case

Power System:

Built in battery: 380 mAh lithium battery for use within 10~20 days w/o any sunlight.

Solar energy: Energy harvesting solar panel. Power-on/Resume-logging upon detection of sunlight

Wireless Operating Range:

Standard mode: Up to 100m (connect to smartphone)

Long range mode: Up to 2 km (line of sight, connect with GW1 gateway)

Radio Spectrum: 2400 MHz to 2483.5 MHz

Recording Capacity: 260,000 GPS waypoints for 10 years recording with 20-mins logging interval

PC Interface: Micro USB port for charging, data download and device settings

Motion Sensor: Ultra low power motion sensor to start power saving when inactive

Operating Temperature: -20 C to +50 C

Power consumption with GPS position broadcasting enabled:(open air, good GPS signal reception, environment)

Log Interval	Power Consumption	85mAh Battery Run Time	850mAh Battery Run Time
1 hour	0.65 mW/0.171mAh	92.6 days	207.1 days
20 min	1.05 mW/0.276mAh	57.4 days	128.3 days
10 min	1.95 mW/0.513mAh	17.2 days	69.0 days
3 min	3.50 mW/0.921mAh	11.7 days	38.5 days
2min(est.)	5.13 mW/1.35mAh	2.6 days	26.2 days



Unlock a new era of animal tracking with the i-gotu G6S Solar Wireless GNSS Receiver. Its affordability, portability, and advanced features make it an indispensable tool for researchers, wildlife enthusiasts, and bird experts. Delve deeper into the secrets of the animal kingdom, start your tracking journey today, and witness the power of the i-gotu G6S in action.
