Mictrack MP90 GPS Vehicle Tracker (OBD II Interface, 4G LTE Network supported)

  • $99.00 USD

(Order today. Will ship on June 4, 2021)

For detail of the 4G LTE Data plan, please refer to here.

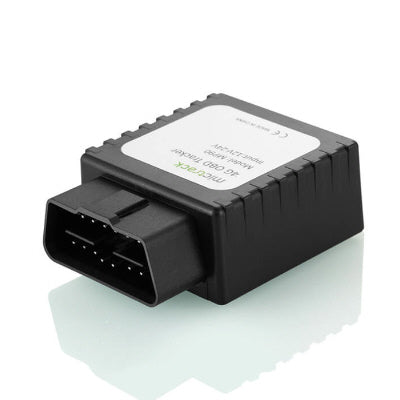

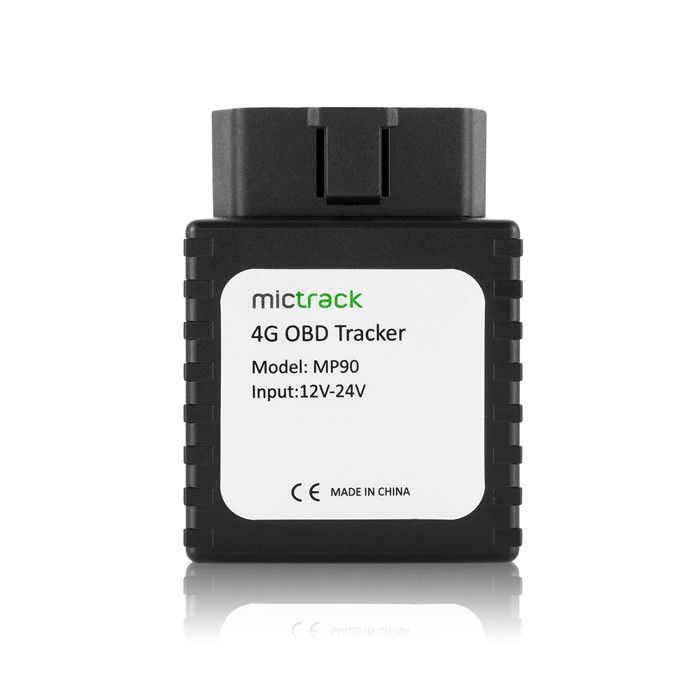

The MP90 is a plug-and-play 4G OBD tracker without wiring. Easy install to any vehicle with a standard OBD II connector. It can be used to locate, track and monitor the vehicle via SMS, PC Computer or Mobile APP. It is commonly used to track and locate individual vehicles, the user also can real time tracking and check the historical route travelled.

The World's smallest 4G OBD Tracker

1. Features

  • 4G FDD LTE network support (also support 3G/2G network)
  • OBD II connector easy to install (Plug and Play)
  • Real-time position acquiring
  • Vehicle trip history and mileage data on web tracking platform
  • Geo-Fence alarm and reporting
  • Vehicle towing / Movement alarm
  • Over-Speed alarm and reporting
  • Remove and disconnect alarm
  • Backup battery low power alarm
  • Car battery low power alarm
  • High temperature alarm
  • Power saving / sleep mode
  • Mileage report


2. Applications

  • Vehicle/truck tracking
  • Asset security
  • Fleet Management


3. Advantages

  • Qualcomm 4G LTE chip solutions
  • Easy installation Plug and Play
  • U-BLOX7 GPS chipset
  • Unique design & White Label
  • Protocol is open and compatible other third party platform
  • IOS & Android support
  • CE Certificate



4. Specification


67(L) x 50(W) x 25(H) mm



Power supply

12-24 VDC

Backup battery

3.7 V 120 mAh

Power consumption

50mA standby current at 12 V

Operating temperature

-20°C to 55°C


5%~95% non-concretion

Working hour

2 hours in power-saving mode, 0.5 hours in normal mode

LED indicator



3D acceleration sensor


Internal 4G & GPS antennas

GPS Sensitivity


Positioning Accuracy


4G Frequency bands

MP90-A (US/Canada/Mexico)

4G LTE: B2/B4/B12

3G WCDMA: 850/1700/1900MHz

MP90-E (Europe/Asia/Africa)

4G LTE: B1/B3/B7/B8/B20/B28A

3G WCDMA : 900/2100MHz

2G: 900/1800MHz

MP90-AU (Australia/New Zealand)

4G LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40

3G WCDMA: 850/900/1900/2100MHz

2G :850/900/1800/1900MMz

Note: Select correct device according to your local frequency bands.

SIM Card interface

Micro Size SIM


 5. Interface

MP90 vehicle tracker - multi device platforms

 MP90 vehicle Tracker - OBD II Plug and Play



6. GPS Tracking Platform

Option 1: use http://trackits.com tracker platform.

$5/per year

$20/life time

Option 2: use ElasticTracker shared server platform

(details will be updated soon.)

Option 3: use ElasticTracker dedicated server platform

(details will be updated soon.)


MP90 vehicle tracker - real-time position acquiringMP90 vehicle tracker - Vehicle trip history and mileage dataMP90 vehicle tracker - GeoFencingMP90 Vehicle Tracker - AlertsMP90 vehicle tracker - Power saving sleep modeMP90 vehicle tracker - applications


7. Integrate with the third party platform

MP90 vehicle tracker - multi-platforms


8. In the box

  • 1* MP90 4G OBD Tracker
  • 1* User Manual
MP90 vehicle tracker - in a box
