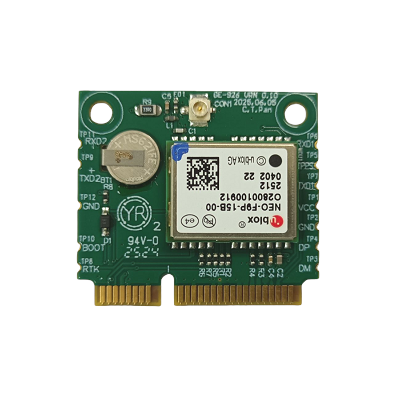

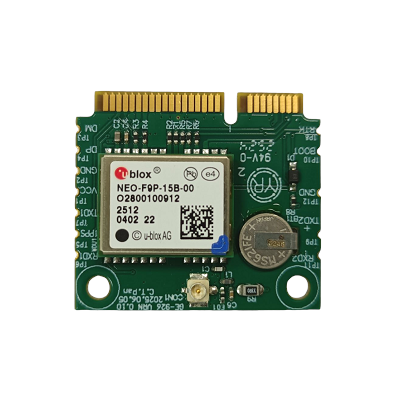

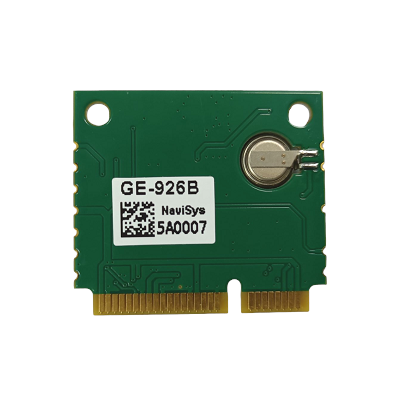

Navisys GE-926B RTK GNSS PCIe Half-Mini Card (u-blox F9P, I-PEX MHF Connector)

The GE-926 is a compact PCI Express Half-Mini Card GNSS module built around the high-performance u-blox NEO-F9P-15B RTK engine. It features an I-PEX MHF RF connector for flexible antenna placement and supports an optional backup battery for faster position fixes.

Designed using the Mini PCIe standard, the GE-926 integrates easily into PC-based or embedded systems, while its half-length form factor makes it suitable for space-constrained designs. In addition to USB, an optional UART/TTL interface is available for versatile system integration.

The module can simultaneously track L1 and L5 signals from all major global navigation systems—GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS—ensuring strong satellite visibility and high-accuracy positioning even in difficult environments.

GE-926 can operate as either an RTK base station or RTK rover, supporting centimeter-level performance. The optional backup battery may be omitted in applications requiring an extended temperature range.

Applications

• UAVs (RTK base or rover)
• Precision agriculture (RTK base or rover)
• Robotics and autonomous systems (RTK rover)

Key Features

• Compliant with PCI Express Mini Card standard
• Powered by u-blox NEO-F9P-15B RTK engine
• Simultaneous multi-band, multi-constellation support:
• GPS + Galileo + GLONASS + BeiDou + NavIC
• SBAS, QZSS
• Supports advanced augmentation systems:
• DGNSS (RTCM 10403.3)
• SBAS: WAAS, EGNOS, MSAS, GAGAN
• QZSS L1/L5 & L1S SLAS
• CLAS (Centimeter-Level Augmentation Service)
• SPARTN 2.0.1
• High sensitivity:
• Acquisition: –148 dBm
• Tracking: –167 dBm
• Fast RTK convergence: 12 seconds (multi-GNSS)
• High RTK update rates (up to 25 Hz depending on constellation)
• Spoofing detection and jamming/interference indication
• I-PEX MHF RF connector for flexible antenna placement
• Short-circuit protection for external active antennas
• Optional backup battery
• USB or UART/TTL interface
• Windows location sensor support
• OMA SUPL compliant A-GPS
• Excellent EMI protection
• Industrial temperature range: –40°C to +85°C

Technical Specifications

GNSS Receiver Performance

• Supported Constellations:
  • GPS/SBAS/QZSS: L1 C/A (1575.42 MHz), L5 (1176.45 MHz)
  • GLONASS: L1OF (1602+k*0.5625 MHz, k = -7…6)
  • Galileo: E1-B/C (1575.42 MHz), E5a (1176.45 MHz)
  • BeiDou: B1I (1561.098 MHz), B2a (1176.45 MHz)
  • NavIC: SPS-L5 (1176.45 MHz)

Position Accuracy (1 ppm for RTK baseline up to 20 km)

• Horizontal (CEP):
  • RTK: 1 cm + 1 ppm (1 km baseline)
  • SBAS: 1 m
  • PVT: 1.5 m
• Vertical:
  • RTK: 1 cm + 1 ppm (median)
  • SBAS: 1.5 m
  • PVT: 2 m

Velocity Accuracy

• 0.05 m/s (speed)
• 0.3° (heading)

Time Pulse

• 0.25 Hz to 10 MHz
• RMS: 30 ns, 99%: 60 ns

TTFF (All measured at –130 dBm)

• Hot start: 3 sec
• Aided start: 4 sec
• Cold start: 27 sec

Sensitivity

• Acquisition: –148 dBm
• Reacquisition: –160 dBm
• Tracking: –167 dBm

Max Update Rate

• RTK: up to 7–25 Hz (depending on constellation configuration)
• RAW/PVT: up to 10–25 Hz

RTK Convergence Time

• <12s (multi-GNSS)
• <30s (GPS only)

Dynamics

• <4 g

Electrical Specifications

• Power supply: 3.3 ± 0.3 V
• Backup power (VBAT): 1.8–3.6 V, 45 μA
• Power consumption: 95 mA (tracking 29 SVs)
• TTL I/O levels:
  • VIH ≥ 2.64 V, VIL ≤ 0.4 V
  • VOH ≥ 2.9 V, VOL ≤ 0.4 V

Environmental Specifications

• Operating temperature:
  • –40°C to +85°C (without battery)
  • –20°C to +60°C (with battery)
• Storage temperature:
  • –40°C to +85°C (without battery)
  • –40°C to +60°C (with battery)

Mechanical Specifications

• Dimensions: 30 × 26.8 × 4.75 mm
• 52-pin Mini PCIe connector (pinout unchanged)
