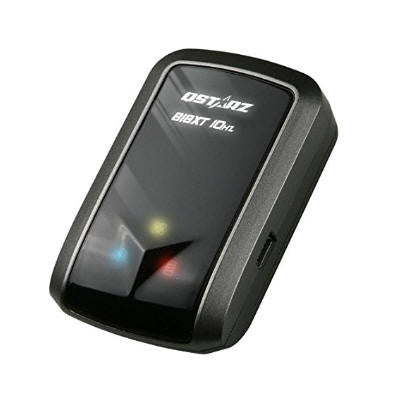

Qstarz BT-Q818XT 10Hz Bluetooth GPS Receiver
Qstarz BT-Q818XT 10Hz High Speed Bluetooth GPS Receiver (66 ch MTKII, Dual Interface USB/Bluetooth)
Qstarz BT-Q818XT is more than just a Bluetooth GPS receiver? Yes, it is enhanced with outstanding 10Hz feature, which is excellent for high speed racing requirement. 3-level switch to easily switch to 10Hz high speed more or 1Hz normal speed mode.
• 66-Channel Performance for fast acquisition and reacquisition
• Super high sensitivity -165dBm adopting latest MTK II chipset
• Lower power consumption up to 42hrs navigation time
• 10Hz update rate for higher accuracy of the demand of eXtreme Sport
• Less than 15-Sec. AGPS fix support : download almanac data to realize faster TTFF and positioning under warm start
• G-Mouse + Bluetooth in one: wired and wireless GPS receiver
• 3-level switch(10Hz-1Hz-Off) for easy operation
• Fast Position Fix ,Cold start 35s, Warm start 33s,Hot start 1s
• Personal/Portable Navigation (PDA, Smartphone, PC, etc.)
• DGPS(WAAS+EGNOS+MSAS) support
• Auto On-Off function for smart power control
*10Hz update rate: Update GPS satellite data per 0.1 second
Q0 Will my GPS device stop working regarding the issue of GPS Week Number Rollover?
A0 Please click here to read the detail about Qstarz statement about the GPS Week Number Rollover (WNRO) issue. Check your model and follow instruction to do next step.
Q1 Why does the GPS positioning fail even though the satellite signals seems to appear normal in my PDA?
A1 The reason might be that the GPS system has not been used for a while and it needs to be rebooted. Follow steps below to reset positioning under the "Visual GPS" application utility. Connect to GPS->Connect using Serial Port->Set the "Com Port" and "baud rate"->Click "OK"
Q2 What kind of circumstance does the "cold start" procedure being undertaken
A2 If the time duration for a proper positioning is longer than two weeks or the distance of positioning is greater than 500 km away from previous location, then the "cold start" procedure is undertaken.
Q3 Why does the position of the car drift around even when my PDA is properly positioned?
This might be caused by the unstable satellite signals. Weak signals usually resulted from allocation in heavily blocked areas which will affect the positioning of the car in the map.
Q4 There is no sign of signal transmission in map utility program. And the positioning fails even though the GPS system is properly connected? Why?
A4 This might be caused by the incorrect COM Port settings. Most of the PDA map utility programs do search for the GPS device. But in this case the GPS device is not found. It is suggested that you manually adjust the COM Port settings instead.
Q5 Why can't I get the positioning to work with my GPS device at home or areas near by window?
GPS is really used for outdoor positioning navigation, and the satellite signal is difficult to be received at home. Especially, it takes a while to get the positioning to work for the very first time. Therefore, positioning must be done outdoor where satellite signal can be received.
Q6 My GPS device seems to work abnormally. Is there any procedure to hard reset it?
A6 Yes, the reset procedure for GPS is simple. Just take out the battery and put it back after at least 5 minutes. The device will be reset to default.
Q7 How can I adjust my device to 10Hz mode?
A7 Please download the tool QstarzGPSView from Qstarz website to adjust. More detailed instruction, please refer to BT-Q818XT user's manual 6-6, and other models as well.
Q8 Will your device work with the iPad or iPhone?
A8 Our device can support iOS by "Jailbreak" the iPhone/iPad and use the application “Roqy” to connect external Bluetooth GPS antenna to your iPhone/iPad. Please refer to the website below : http://www.roqy-bluetooth.net/wp/
Q9 Is there any way to get the software for a Mac?
A9 All of our software does not support mac OS.
The alternative way is using the following third party software.
Download log data:
Q10 How can I change the NMEA sentence?
A10 Please download the tool QstarzGPSView from Qstarz website to adjust NMEA sentence. tool QstarzGPSView from Qstarz website to adjust NMEA sentence.
Q11 How can I connect to an Android phone? It is able to pair but cannot connect.
A11 Please download free software ”Bluetooth GPS” from Android Market to connect BT-Q818XT with your Android smart phone.
Q12 I lost my travel charger and battery. Where can I find replacements for both?
A12 DC Input range of BT-Q818XT is 4.5~5.5V. You can also use a common mini USB cable to charge your unit via the laptop or PC. Besides, the battery for BT-Q818XT is compatible with Nokia phone series. The battery model is BL-5C.
