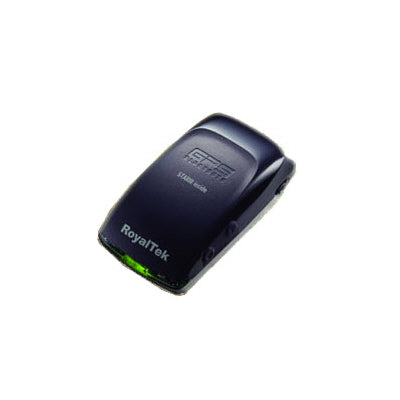

Royaltek Bluetooth GPS x-mini (RBT-2100) (SiRF III)

Royaltek Bluetooth GPS x-mini (RBT-2100) (SiRF III)

  • $39.00 USD


This item has been discontinued by the manufacturer.

Recommended replacement products are :

==========================================

SiRF Star III GPS chipset (no external antenna jack)
20 parallel channels
NMEA0183 compliant protocol
Extreme fast TTFF at low signal level
High sensitivity acquisition
Power saving features
Industrial Standard
Built-in Re-chargeable battery
More than 6 hrs. of operating time

Specification
Chipset: SiRF Star III
Frequency: L1, 1575.42 MHz
C/A code: 1.023 MHz chip rate
Channels: 20 channel all-in-view tracking
Position: 10 meters, 2D RMS
Velocity: 0.1 m/s
Time: 1 us synchronized to GPS time
Default: WGS-84 Acquisition Time (Open sky, stationary)
Altitude: 18,000 meters (60,000 feet) max.
Velocity: 515 meters/second (1000 knots) max.
Acceleration: Less than 4g
Jerk: 20 m/sec3
Battery: 680mAh Li-Ion
Connection: Communication with host platform via Bluetooth Serial Port Profile
Protocol messages: NMEA-0183 output protocol
Output format: GGA(1sec), GSA(5sec), GSV(5sec), RMC(1sec),VTG(1sec)
Dimension: 70mm x 41mm x 25mm

Package Contents:
RBT-2110 BT GPS Receiver w/ battery
AC charger
DC charger
