Royaltek RGM-3800 GPS Data Logger and USB GPS Receiver (SiRF III, WAAS, 64MB Memory)

This item has been discontinued by the manufacturer.

Recommended replacement products are :

• Columbus V-900 Bluetooth GPS Data Logger
• Qstarz BT-Q1000XT Bluetooth GPS Data Logger

==========================================

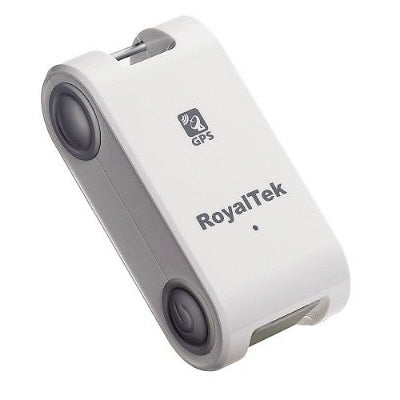

Royaltek RGM-3800 is a GPS data logger with USB GPS receiver Function. It comes with photo matching tools especially for digital cameras. It records travel information into the internal memory. With the included Data Download Utility and Photo Album Software, it will display photo, location information, map, and satellite image together into a composite view.



Features:

• SiRF III GSC3f/LP
• 64MB memory for 650,000 points
• Three recording configuration
• Compact, light weight design
• Dual LED displays Power, Memory, and GPS Status

Antenna

• Receiver Frequency: 1575.42 MHz (L1 band)
  C/A code
• Antenna Type: Built-in Patch Antenna



GPS Receiver

• Technology: SiRF III GSC3f/LP
• Satellite Measure Used: 20 channels all in
  view tracking
• Operating Temperature: -20 degree to 50
  degree C
• Operation Time: 10+ hrs with 2 x AAA batteries
• Charging Port: Mini-USB



Time to First Fix (TTFF)

• Hot Start: 1 seconds typical
• Warm Start: 35 seconds typical
• Cold Start: 42 seconds typical



Receiver Configuration

• Baud Rate: 115200 bps
• Output Message: NMEA 0183 v3 (GGA, GSA,
  GSV, RMC)
• TCXO: 16.369 MHz based on 2.5 ppm
• DGPS: WAAS, EGNOS



Physical Characteristics

• Dimension: 70mm x 36.6mm x 24mm
• Weight: 50g
• Buttons: Power Button x 1, Memory Clear Button x 1



Location Log

• Log Data: UTC Time, Longitude, Latitude, Altitude, Velocity
• Log Interval: 5 sec ~ 60 sec User configurable (Default 15 sec)
• Log Configuration:

Type 1: Time, Logitude, Latitude (650,000 points)
Type 2: Time, Longitude, Latitude, Altitude (500,000 points)
Type 3: Time, Longitude, Latitude, Altitude, Velocity (400,000 points)

Log duration:

• Over 180 days (15 sec interval and 12 hour day)



Product Content:



• GPS Data Logger x 1
• Data Cable x 1
• User Manual and Application CD x 1
