Wintec WBT-100 (4-in-1) GPS Receiver (Bluetooth, USB, Compass, DataLogger with Google Earth Integration)

Wintec WBT-100 (4-in-1) GPS Receiver (Bluetooth, USB, Compass, DataLogger with Google Earth Integration)

  • $109.95 USD

This item has been discontinued by the manufacturer.

Recommended replacement products are :

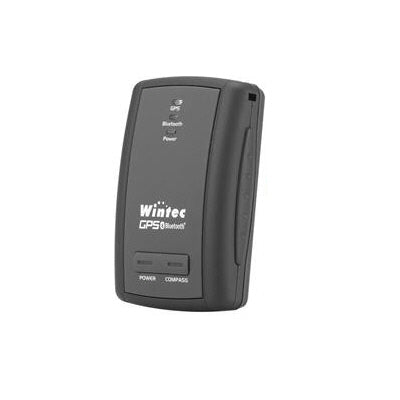

Wintec WBT-100 is a multi-function Bluetooth GPS data logger in an ultra compact(48g) form factor. The stand-alone track recording function is independent from any host and can be operated with Bluetooth off. The recorded track can be configured and even uploaded to Google Earth automatically with the bundled GPS utility.

Bluetooth GPS

WBT-100 takes advantage of the Bluetooth wireless technology to offer hassle free installation on a Bluetooth enabled PDA, laptop and even smart phone.


WBT-100 has on-board USB for using GPS in real-time through USB connection. The USB interface can also be used for data download or firmware upgrade.


WBT-100 has a built-in electronic compass with auto-correction feature. It provides accurate heading information just like a regular magnetic compass. Unlike the standard GPS receiver with heading that is only accurate up to the last GPS data point, the WBT-100's built in electronic magnetic compass will provide real time heading just exactly like a regular magnetic compass.

Data Logger

WBT-100 can record up to 12680 waypoints. The data string includes timing, latitude, and longitude. The recorded track can be downloaded by Bluetooth or mini-USB and uploaded to Google Earth with bundled utility for viewing and analysis.

Data Logger Specification:


  1. Maximum data up to 12680 waypoints

  1. Circular recording

  1. Auto-logging without host device

  1. Log-data can be downloaded with the included G-tool software

  1. Google Earth integration

  1. Data can be downloaded thru USB or Bluetooth

  1. Data includes latitude, longitude, time in year-month-date-min-sec

  1. Four types for log mode
  • Disable Logger mode
  • Log by interval of time mode
  • Log by interval of range mode
  • Auto log mode (auto-change log interval based on speed)

GPS Specification:


  1. Chipset : u-Nav + iTrax, 3rd generation

  1. Channel : 12 Channel parallel satellite tracking

  1. Time to First Fix (TTFF) : < Average 8/38/40 sec. (Hot/Warm/Cold start)

  1. Antenna : Built-in active antenna

  1. Output Message : NMEA 0183 (GGA, GSA, GSV, RMC)

  1. Accuracy : < 3M (CEP), 6M (2D RMS)

  1. Power Supply: 5V

  1. Power Consumption : 65mA

  1. Battery Life : 10 Hours with user replaceable Li-Ion Battery

  1. Dimension : 60 x 38 x 16 mm (W x L x H)

Product Content:


BT GPS x 1

AC Charger x 1

Car Charger x 1

Data Cable x 1

CD x 1
