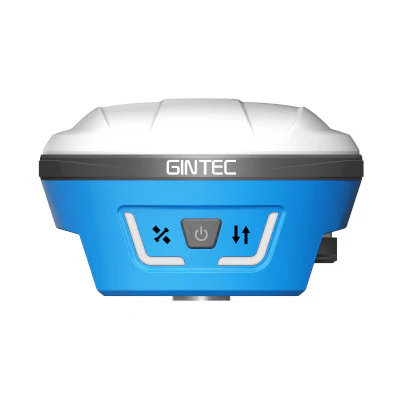

Gintec G50 Laser RTK GNSS Receiver (Triple-Band L1/L2/L5, 1408 Channels, 0.8cm Accuracy, Laser Measurement & Stakeout)

The G50 is a next-generation, high-performance laser GNSS receiver engineered for non-contact, high-precision positioning. Equipped with cutting-edge technology, the G50 redefines geospatial measurement by delivering exceptional accuracy and versatility. Its integrated advanced laser module and high-definition Stellar Cameras allow users to effortlessly measure hard-to-reach points, even in the most challenging conditions.

Experience unmatched performance and reliability with the G50 – the ideal tool for professionals demanding precision in every measurement.

(Reach the Unreachable)

Key Features

Superior Laser Positioning Accuracy and Stability

The G50 delivers minimal data variation across multiple measurements under identical conditions. Featuring Mileseey’s advanced EDM laser unit and the unique Laser-Easy ranging algorithm, it ensures exceptional accuracy and data stability.

Clearer and Brighter Laser Spot

Equipped with a Class 2 red laser, the G50 projects a bright and clear laser point, making targeting faster and laser measurements more efficient.

Accurate Measurement on Any Object

With high-intensity laser emission and superior reflectivity, the G50 consistently achieves stable and reliable ranging results, regardless of an object’s color or material.

Valid Real-Time Data Collection

The G50 supports continuous laser data collection and transmission at up to 20Hz. Integrated with CY software, it enables real-time measurements, significantly reducing acquisition time and improving efficiency.



Laser Staking-Out

The G50 integrates advanced IMU, algorithms, and EDM technology to support real-time laser staking-out, making difficult measurement points accurate, efficient, and easy to execute.

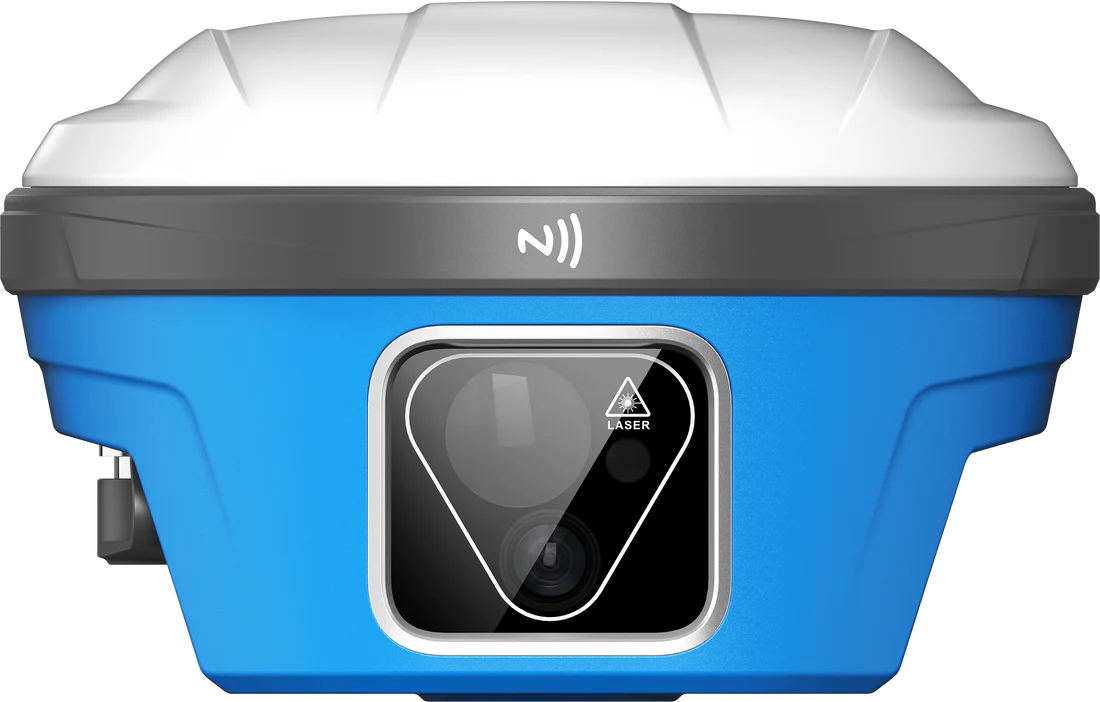

HD Stellar Camera

With adaptive exposure adjustment and an IR filter, the G50 excels in low-light conditions, effectively filtering infrared light and significantly enhancing nighttime measurement and image quality.

G-FIX Correction Outage Technology

• Extends FIX solutions for up to 10 minutes.

 • Minimizes downtime by reducing the wait time to re-establish RTK corrections.



120° Tilt Measurement with 2.5cm Accuracy

Leveraging fourth-generation tilt measurement technology, the G50 delivers FIX solutions with up to 120° tilt while maintaining a remarkable accuracy of 2.5cm, even in extreme measurement angles.

GALILEO HAS/BDS PPP Service Support

• GALILEO HAS: Provides free, high-precision PPP correction services on the Galileo E6-B signal for enhanced real-time positioning.

• BDS PPP: Offers free high-precision PPP corrections within the BDS coverage area, ensuring accuracy worldwide.

Augmented Reality (AR)

The G50’s cutting-edge dual-camera system enhances accuracy and user guidance during measurements and stake-out processes, improving overall efficiency and precision.



"CreateYours" Survey & Data Collection Software Included

The G50 comes with the CreateYours handheld Android application, specifically designed for seamless survey and data collection workflows:

• Laser Survey Mode: Optimized for G50’s laser capabilities.

• Auto-Drawing: Automatically generate lines and polygons while collecting points.

• Base Map Options: Supports Google Maps, WMS, and CAD for accurate field visualization.

• CAD Tools: Powerful engine for precise design and polygon creation.

• Road Design & Staking: Simplifies road planning with intuitive tools.

• DSM-Based Terrain Staking: Efficiently handle complex terrain data.

• Team Collaboration: Share survey data effortlessly within teams with one-click transmission.

For detailed information about the CreateYours software, please visit our CreateYours product page.



Specifications:

Positioning

• Channels: 1408

• GPS: L1C/A, L1C, L2P(Y), L2C, L5

• GLONASS: G1, G2, G3

• BDS: B1I, B2I, B3I, B1C, B2a, B2b

• GALILEO: E1, E5a, E5b, E6

• QZSS: L1, L2C, L5, L6

• NAVIC (IRNSS): L5

• SBAS: L1C/A

• PPP: B2B-PPP | E6-HAS

• Data Update Frequency: 50Hz

• Positioning Frequency: 1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 50Hz

• Cold Start Time: <12s

• Initialization Time: <5s

• Initialization Confidence: >99.9%

Measurement Accuracy

• Static Mode Accuracy: H: ±2.5mm + 0.5ppm | V: ±5.0mm + 0.5ppm

• Single Point Solution Accuracy: H: 1.5m | V: 2.5m

• Differential Solution Accuracy: H: 0.4m | V: 0.8m

• RTK Accuracy: H: ±8.0mm + 1ppm | V: ±15.0mm + 1ppm

• Time Accuracy: 20ns

• Tilt Measurement Accuracy: ≤2.5cm within 120°

Battery

• Battery Life: Static: 20h, Rover: 16h, Base: 10h

• Power Supply: 9V/2A, 5V/2A MAX 18W, 3.6V 13600mAh

Physical Properties

• Shell Material: Magnesium-Aluminum Alloy

• Weight: 990g

• Dimensions: Ø135×90mm

• Button: Power Button

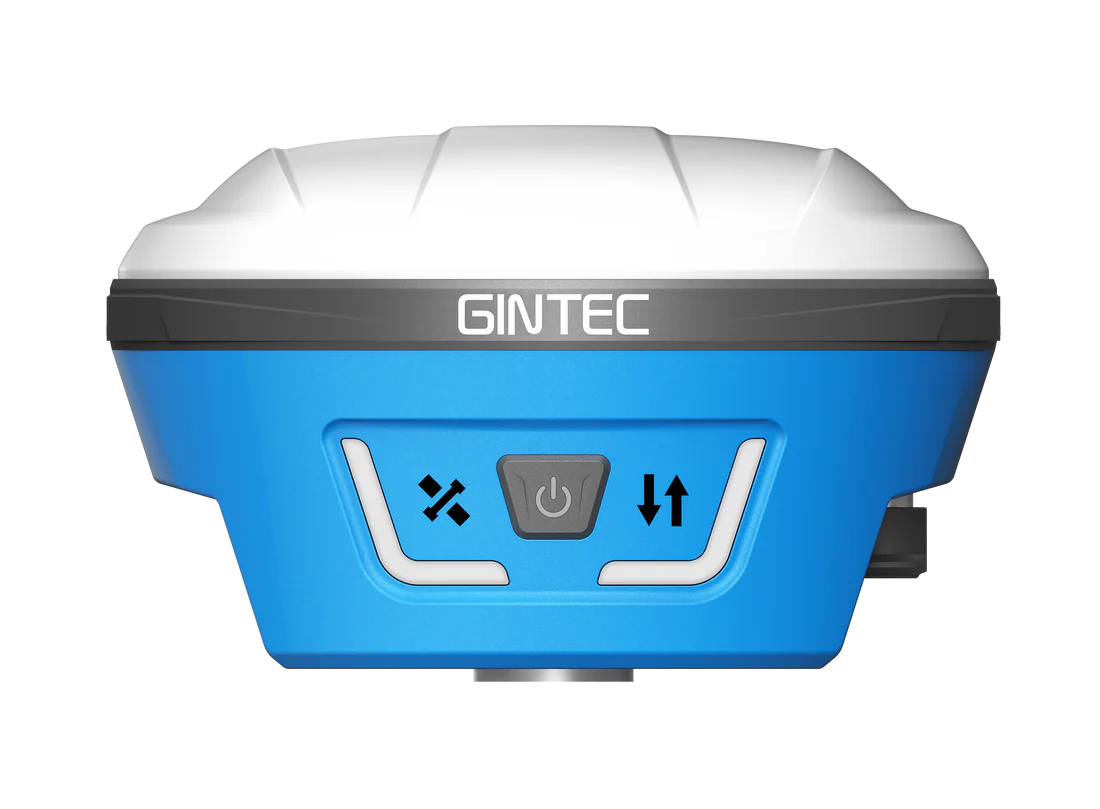

• Indicator Lights: Satellite Signal Light, Data Transmission Light, Current Battery Light

Laser - Easy

• Type: Class 2, red

• Range:

• 0.05–49.99m (Daylight)

• 0.05–99.99m (Moonlight)

• Distance Accuracy: 2mm @ 1σ

• Tracking Measurement: 5–20Hz

• Final Accuracy:

• <2cm within 5m

• <3cm within 10m

System

• Operating System: Linux

• Memory: 8GB

• Data Transmission: 4G/Bluetooth/Wi-Fi/Radio

• Bluetooth: V5.0, BLE

• Wi-Fi: 802.11a/b/g/n

• Radio Power: 1W

• Radio Frequency: 410–470MHz

• Air Baud Rate: 19200, 9600, 4800

• Supported Protocols: Gintec Work, TrimTalk450s(T), TrimMark III, SOUTH, PCC-EOT, Hi-target, Satel, Farlink, etc.

• Supported Languages: Chinese, English, Polish, Turkish, Korean, Indonesian, Spanish, Telugu, Russian, etc.

Camera

• Number of Lenses: 2

• Front Lens Field of View: 83.4°

• Front Sensor Pixel: 2 Mega Pixel

• Front Camera Focal Length: 5m

• Front Sensor Resolution: 1920×1080

• Bottom Lens Field of View: 83.4°

• Bottom Sensor Pixel: 2 Mega Pixel

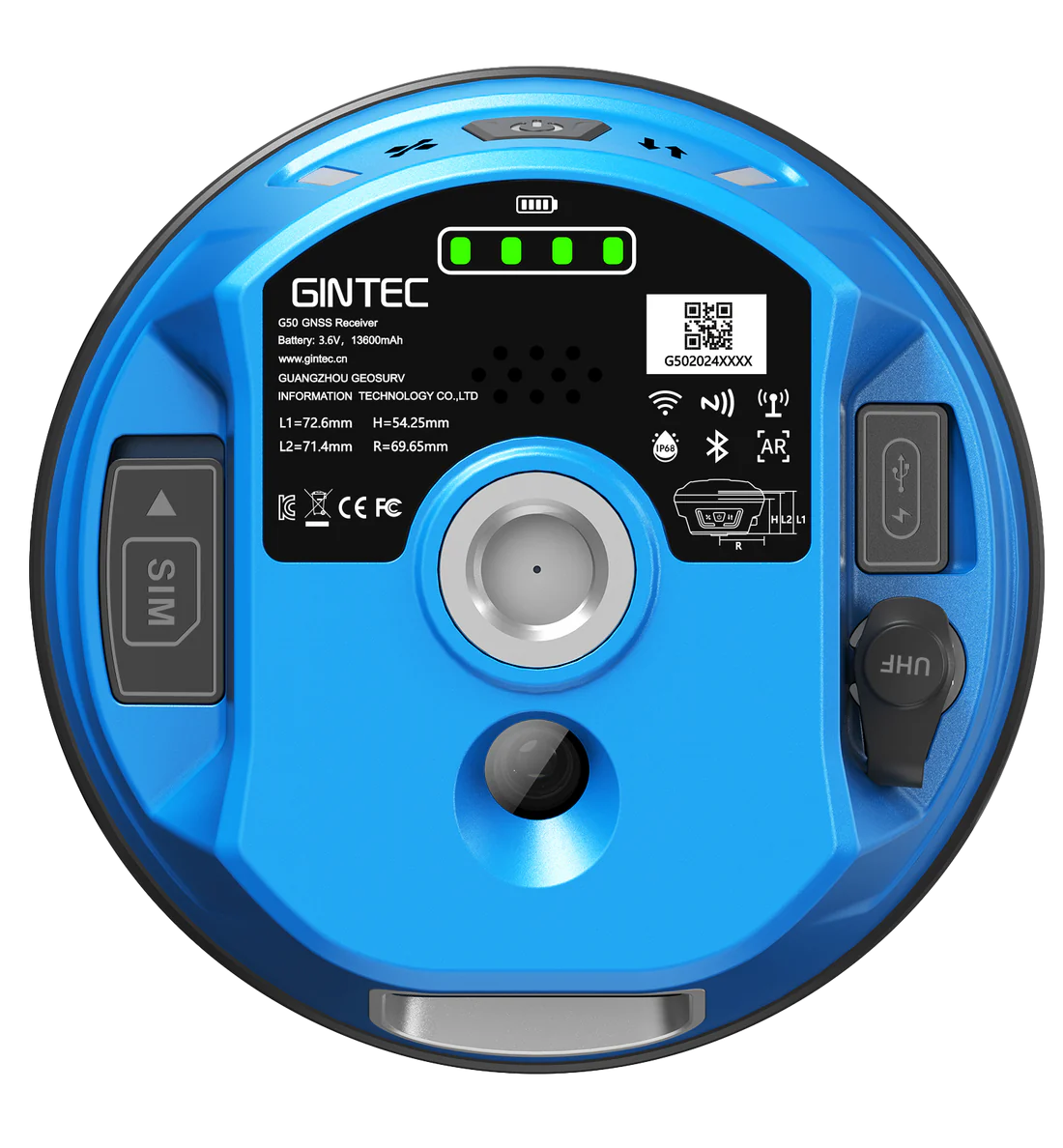

• Bottom Camera Focal Length: 2m

• Bottom Sensor Resolution: 1920×1080

Environmental Adaptability

• Operating Temperature: -30°C to +65°C

• Storage Temperature: -40°C to +80°C

• Water and Dust Resistance: IP68

• Shock and Drop Resistance: 1.8m drop onto a rod

• Operating Humidity: 99.9% non-condensing

Note: LASER RADIATION: AVOID DIRECT EYE EXPOSURE.
