MT825 Mini GPS Tracker (LTE-M / CAT-M1, up to 5 months standby time, ready-to-go tracking solution)

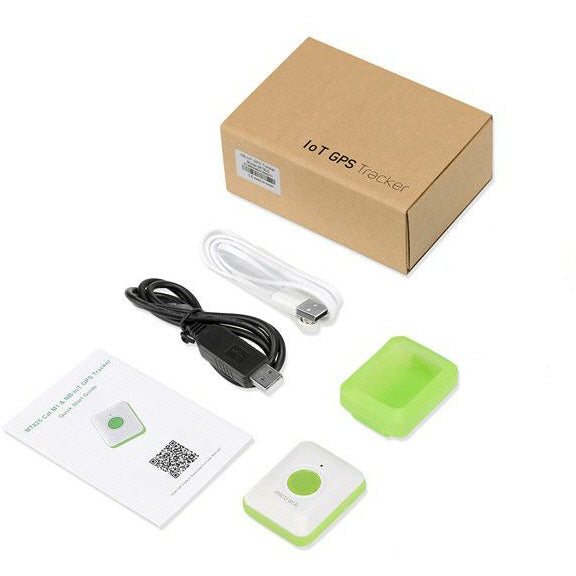

This is a ready-to-go tracking solution. Including

• MT825 mini GPS tracker (you own it)
• Tracking software platform subscription
• LTE-M cellular data subscription

To extend the subscription, just buy our prepaid subscription plan when needed.

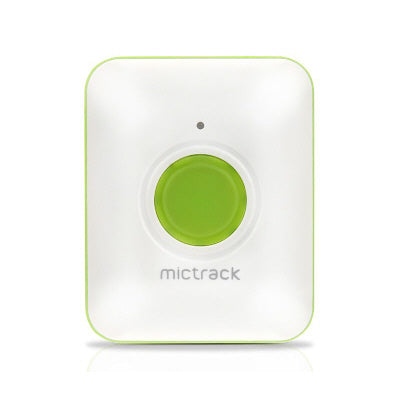

MT825 is a Mini GPS tracker that uses the latest CAT M1 (LTE-M) technology that can provide low power consumption and optimized data transmission at low cost. The parents or pet owners can track the unit via their smartphone even if far away. With the hybrid positioning system, GPS and WiFi allow getting a more precise location. It can be used for personal and Assets tracking.



Features:



Super low power consumption

It uses LTE-M and Cat M1 technology that can provide super low power consumption up to 5 months standby time powered by internal batteries.



Indoor and underground penetration and rural coverage

LTE-M trackers are future proof trackers. Compared to the traditional 4G LTE network, LTE-M network has better indoor and underground penetration. Furthermore, it also improves the coverage in rural areas.



Indoor WiFi positioning

When the tracker is indoor and without GPS/GNSS satellite signal. It will automatically switch to WiFi Positioning mode.



Web, Android & IOS Track and Trace Software platform

You can login to the tracking platform by using Desktops, iphones or Android phones. Our Tracking platform is powered by AWS cloud. The most advanced and stable cloud in the world. The connection between your device to the platform is secured by TLS.





GPS Tracker Specification

Dimension	50(L)*40(W)*16(H)mm
Weight	36g
Power Connector	Magnetic charging DC 5V
Backup battery	3.7 V 680mAh
Frequency bands	Cat M1 (LTE-M, eMTC) : LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 LTE TDD: B39 NB-IoT (Cat NB1): LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 GSM: 850/900/1800/1900Mhz
Positioning	GPS, WiFi, LBS
GPS sensitivity	-162dBm
Channel	56
Positioning Accuracy	10m
Cold Start	30s
Warm start	15s
Hot start	1s
Working temperature	-20°C to +65°C
Humidity	5% to 95% non-concretion
Antenna	Internal LTE CAT M1 & NB-IoT & GPS antennas
Sensor	3D accelerometer sensor
LED	RED(Charge), GREEN(Cellular and GPS)
Waterproof	IP65
SIM Card interface	Nano SIM
Certificate(Module)	FCC/PTCRB/AT&T/Verizion/T-Mobile/Vodafone



Cellular network coverage

LTE-M coverage by our network partner

Last updated: April 30, 2021

As of today, our network partner provides multi-network LTE-M connectivity in 44 countries across five continents. We offer four different service levels (expected, observed, validated, and guaranteed coverage*) depending on your deployment location and advise you on network coverage, quality, and availability in line with your trackers deployment.



Below table shows the LTE-M footprint for North America.

For Global LTE-M footprint, please download this PDF file.

* Service Level / Coverage Status Definition

Expected: LTE-M roaming is theoretically possible based on standard 4G implementations.

Observed: LTE-M traffic from customers has been observed for this network.

Validated: LTE-M availability is frequently tested and confirmed for this network.

Guaranteed: LTE-M service is guaranteed with dedicated roaming agreements.

** All coverage data is provided for informational purposes only and are subject to change. Actual service coverage, quality, and availability may vary based on factors such as network partners' technology roll-out, weather, interference, topography, and device model.





Why is LTE-M the best cellular network option for trackers?  Why Not other cellura network like 2G, 3G,4G LTE or NB-IoT?

LTE-M introduces a future-proof alternative for growing mobile and stationary IoT applications across verticals. Compared to  2G, 3G & 4G LTE, LTE-M has the below advantages.

Extended range

15 dB higher sensitivity than LTE, providing better indoor and underground penetration and improved coverage in rural areas.

Low power consumption

Power Saving Mode (PSM) and Extended Discontinuous Reception (eDRX) features enable a longer battery life.

Low latency

Highest data rate of any LPWAN technology to enable mission-critical applications and flexible upgrade of device use cases.

Excellent mobility

Seamless cell handover supporting mobile devices at up to 300 km/h velocity.

Why not NB-IoT?

NB-IoT data rate is very low & it doesn’t support cell handover, it is not as good as LTE-M for Tracking solution.



Track and Trace Platform

Our Tracking platform is running on cloud. It provides the below features:

• Real time trace and track is available from desktops & mobile phones. The connection between your device to the platform is secured by TLS.
• Geo-fencing
• Email notification
• History tracking data available for the last 3 months.
• Tracking data can be downloaded.
• Daily schedule backup

 Below are the screenshots of our Track and trace Platform:

Web Management Console

Login screen





Realtime Track and trace





GeoFencing Setup







GeoFencing Notification Setup







Inside the GeoFencing area







Exiting Geo-fencing area







Historical data showing







Historical data summary





Historical speed chart

Iphone/ipad app (Traccar Manager) free download from Apple App Store:

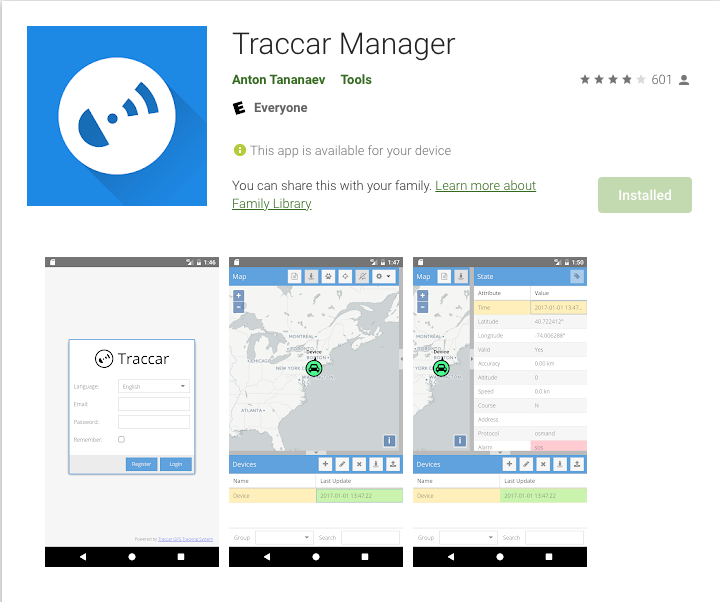

Android app (Traccar Manager) free download from Google Play:







Configure options:

Tracker report frequency           Battery runtime estimate

1 transmit per day ---                   4 to 5 months

1 transmit per hour ---                 6 to 7 days

1 transmit per 10 minutes ---      1.5 - 2 days

The default config is 1 transmit per 10 minutes. If you want to change to another frequency, please email to info@gpswebshop.com .

Order processing requires 1 to 2 business days for device testing, activation, configuration, and user setup. Once processing is complete, devices will be shipped by the shipping method you selected. Meanwhile, we will send you a welcome email with the tracking platform login.



 Documents:

	User Guides:
	- ElasticTracker Web Tracking Platform - User Guide  - ios app setup instructions.  - Android app setup instructions.
