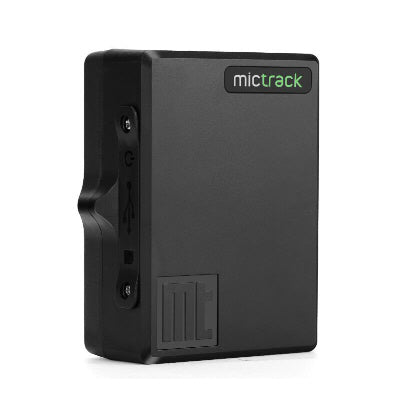

MT700 Commercial Grade GPS Asset Tracker (LTE-M / CAT-M1, up to 8 years standby time, ready-to-go tracking solution)

This is a ready-to-go tracking solution. Including

• MT-700 GPS Asset tracker (you own it)
• Tracking software platform subscription
• LTE-M cellular data subscription

To extend the subscription, just buy our prepaid subscription plan when needed.



MT700 is an IP68 weatherproof asset GNSS tracker. The user can real-time track the unit via their mobile phone or PC any time anywhere. It has been widely used in fleet management, trailer, container, logistics, car rental, automobile finance, transportation, and other segments.





Features:

Super low power consumption

It uses LTE-M and Cat M1 technology that can provide super low power consumption up to 8 years standby time powered by internal batteries. Its ultra low power consumption is less than 1.5uA





Indoor and underground penetration and rural coverage

LTE-M trackers are future proof trackers. Compared to the traditional 4G LTE network, LTE-M network has better indoor and underground penetration. Furthermore, it also improves the coverage in rural areas.





Multiple Global Navigation Satellite Systems

The tracker not only uses GPS system, but also Glonass+Galileo+Beidou GNSS Systems.



Indoor WiFi positioning

When the tracker is indoor and without GPS/GNSS satellite signal. It will automatically switch to WiFi Positioning mode.





Web, Android & IOS Track and Trace Software platform

You can login to the tracking platform by using Desktops, iphones or Android phones. Our Tracking platform is powered by AWS cloud. The most advanced and stable cloud in the world. The connection between your device to the platform is secured by TLS.





Quick Charge

The tracker can be quick charged in 2A@5V







Rugged

• IP68 device (weatherproof).
• Industry grade Rugged Construction added protection.
• Its built-in powerful magnets, easy to install without wiring.





GPS Tracker Specification

Dimension	88mm*62mm*34mm (3.46″ *2.44″ *1.34″)
Weight	290g (10oz)
Charging mode	Micro USB charging DC; Quick Charge 2A@5V
Power consumption	<1.5ua standby current (in lowest power configuration)
Backup battery	Rechargeable 3.7V 7800mAh Li-battery; Non-rechargeable LiFeS2 batteries are optional
Frequency bands	Cat M1 (LTE-M, eMTC) : LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 LTE TDD: B39   NB-IoT (Cat NB1): LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28   GSM: 850/900/1800/1900Mhz
Working temperature	-20°C to 60°C (-4°F to 140°F)
Mounting	Magnet
Positioning	GPS, WiFi (optional)
GPS	Qualcomm Gen 8C GNSS receiver
GPS Antenna	Internal
Cellular Antenna	Internal
Sensor	3-Axis Accelerometer, Light Sensor
Humidity	5% to 95% non-concretion
LED	Charge/SYS/GPS
SIM Card interface	Internal Micro 3FF SIM
Protocol	TCP, UDP, SMS
Waterproof	IP68
Battery life	8 Years
Certificate	FCC, CE (under planning)



Cellular network coverage

LTE-M coverage by our network partner

Last updated: April 30, 2021

As of today, our network partner provides multi-network LTE-M connectivity in 44 countries across five continents. We offer four different service levels (expected, observed, validated, and guaranteed coverage*) depending on your deployment location and advise you on network coverage, quality, and availability in line with your trackers deployment.



Below table shows the LTE-M footprint for North America.

For Global LTE-M footprint, please download this PDF file.

* Service Level / Coverage Status Definition

Expected: LTE-M roaming is theoretically possible based on standard 4G implementations.

Observed: LTE-M traffic from customers has been observed for this network.

Validated: LTE-M availability is frequently tested and confirmed for this network.

Guaranteed: LTE-M service is guaranteed with dedicated roaming agreements.

** All coverage data is provided for informational purposes only and are subject to change. Actual service coverage, quality, and availability may vary based on factors such as network partners' technology roll-out, weather, interference, topography, and device model.





Why is LTE-M the best cellular network option for trackers?  Why Not other cellura network like 2G, 3G,4G LTE or NB-IoT?

LTE-M introduces a future-proof alternative for growing mobile and stationary IoT applications across verticals. Compared to  2G, 3G & 4G LTE, LTE-M has the below advantages.

Extended range

15 dB higher sensitivity than LTE, providing better indoor and underground penetration and improved coverage in rural areas.

Low power consumption

Power Saving Mode (PSM) and Extended Discontinuous Reception (eDRX) features enable a longer battery life.

Low latency

Highest data rate of any LPWAN technology to enable mission-critical applications and flexible upgrade of device use cases.

Excellent mobility

Seamless cell handover supporting mobile devices at up to 300 km/h velocity.

Why not NB-IoT?

NB-IoT data rate is very low & it doesn’t support cell handover, it is not as good as LTE-M for Tracking solution.



Track and Trace Platform

Our Tracking platform is running on cloud. It provides the below features:

• Real time trace and track is available from desktops & mobile phones. The connection between your device to the platform is secured by TLS.
• Geo-fencing
• Email notification
• History tracking data available for the last 3 months.
• Tracking data can be downloaded.
• Daily schedule backup

 Below are the screenshots of our Track and trace Platform:

Web Management Console

Login screen





Realtime Track and trace





GeoFencing Setup







GeoFencing Notification Setup







Inside the GeoFencing area







Exiting Geo-fencing area







Historical data showing







Historical data summary





Historical speed chart

Iphone/ipad app (Traccar Manager) free download from Apple App Store:





Android app (Traccar Manager) free download from Google Play:







Configure options:

Tracker report frequency            Battery runtime estimate

1 transmit per day                          4 to 8 years

2 transmits per day                       3 to 5 years

4 transmits per day                       1.5 to 2.5 years

6 transmits per day                       1.3 to 2 years

12 transmits per day                     1.2 to 1.5 years

24 transmits per day                    0.8 to 1.2 years



The default config is 24 transmits per day. If you want to change to another frequency, please email your request to info@gpswebshop.com .

Order processing requires 1 to 2 business days for device testing, activation, configuration, and user setup. Once processing is complete, devices will be shipped by the shipping method you selected. Meanwhile, we will send you a welcome email with the tracking platform login.



 Documents:

	User Guides:
	- ElasticTracker Web Tracking Platform - User Guide  - ios app setup instructions.  - Android app setup instructions.
