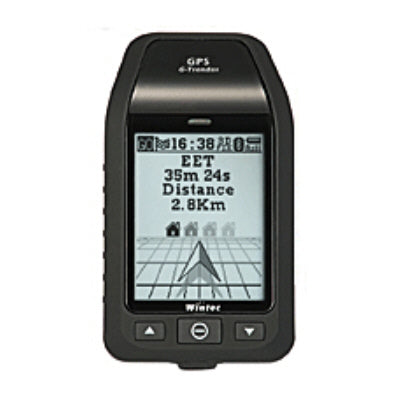

Wintec G-Trender WSG-1000 Waterproof Sport Bluetooth GPS Data Logger (LCD, Barometer, Electronic Compass, Dual Interface - USB/Bluetooth)

Wintec G-Trender WSG-1000 Waterproof Sport Bluetooth GPS Data Logger (LCD, Barometer, Electronic Compass, Dual Interface - USB/Bluetooth)

This item has been discontinued by the manufacturer.

Recommended replacement product is :

==========================================


Wintec G-Trender WSG-1000 integrates high-sensitivity GPS receiver, barometric altimeter and electronic compass, also provides not only a large LCD showing various dynamical information but also the data logger supporting the off-line tracking. It is the best companion for sport and recreation.

 Wintec G-Trender WSG-1000 Waterproof Sport Bluetooth GPS Data Logger (LCD, Barometer, Electronic Compass, Dual Interface - USB/Bluetooth)

Features:

  • Simultaneously supports GPS Data (NMEA message) via Bluetooth and USB interfaces.
  • Records unlimited number of tracks and routes (up to the free built-in memory space)
  • Provides real time info on latitude, longitude, direction, speed and time.
  • Electronic compass and Barometer built-in! -- no more inaccurate altitude reading by relying on altitude info from GPS data.
  • A destination (Mark) direct navigation (Make and save a location as your destination by TMX or G-Trender itself, and G-
    Trender will show you the direction to find the specified location.)
  • Supports instant position of the sun, sunrise/sunset and the monthly phase of the moon.
  • Supports multi-language (English and Traditional Chinese at present), Metric / Imperial system and Fahrenheit /
    Centigrade.
  • Supports My Training on distance, time, average speed, max. speed and max. attitude.
  • Large backlit LCD screen provides various useful information without using a computer.
  • Periodical LED function.
  • Support over speed warning.
  • Supports over speed alert / warning (user-configurable speed limit)
  • Fully ruggedized and waterproof (IPX5) design is perfect for extreme sports and outdoor use.
  • Supports GeoTagging (click to learn more...), showing tracks on Google Earth / Google Maps, etc...
  • [Free] Firmware upgradeable via PC. So, your Wintec G-Trender is always updated with the latest features and
    improvements. (From time-to-time, Wintec releases updates to improve or fix application features).

Spec:

  • Battery BL5C rechargeable lithium-ion(Nokia type, typical 1100mA)
  • Power Consumption Depends on each states.
  • States 1: 50mA (simple log mode, Shut off the LCD)
  • States 2: 60mA (normal mode, Bluetooth disable)
  • States 3: 75mA (Bluetooth enable)
  • Power Consumption for back light:25mA
  • Memory Size: 2M bytes(Max. on 130,000 way-point, depends on the memory scheme of F/W)
  • Operation Temperature -20~50C
  • GPS
  • IC: uBlox 0625
  • Accuracy: 2.5m CEP (Stand-Alone, S/A off)
  • Time to First Fix:34s (Cold Start)
  • Acquisition Sensitivity: –142 dBm
  • Tracking Sensitivity: –158 dBm
  • SBAS Supported.
  • AGPS Supported.
  • Bluetooth
  • V1.2
  • Output Power:CLASS 2 (about 10 meter)
  • Service:SPP Slave
  • Barometric Altimeter
  • Pressure range 300 ... 1100 hPa (+9000 ... -500 m)
  • Resolution ±0.06 hPa (0.5 m) internal
  • Electronic Compass
  • Measuring magnetic field range : ±300uT
  • Resolution < 0.6uT/count
