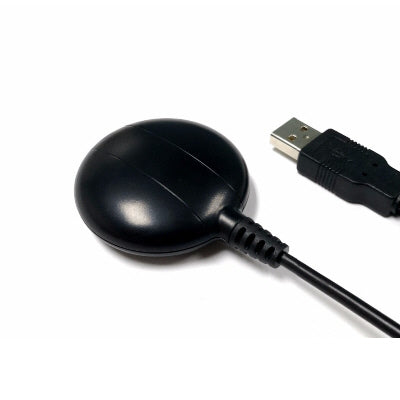

GNSS200L Industrial high sensitivity usb GNSS Receiver (72 channels; GPS+GLONASS+GALILEO Tri-System ; IP67 waterproof; configurable 1 to 10Hz)

Applications:

• Track record of data acquisition
• Automatic vehicle location
• Driving recorder
• Navigation
• GPS clock and digital camera
• Child/elderly/personal locator and security system

Features:

• Multi-satellite positioning systems support: GPS/GLONASS/GALILEO
• IP67 waterproof
• Based on 8030 low power single chip
• Low power: 40mA at continuous tracking
• SBAS (WAAS, EGNOS, MSAS) support
• 10Hz update rate option (default 1Hz)
• RTCM 2.3 4.X support
• A-GPS support, OMA SUPL/3GPP TS25.171 (GSM/UMTS) compliant
• Easy to use: built-in patch 25*25*4mm antenna
• Backup battery support for faster position fix
• LED for position fix indication
• Windows location sensor support

Technical Spec:

Compatible OS:

• Windows XP, Vista, 7, 8, 10 and 11
• Linux

Documents:

- GNSS200L / Ublox NMEA Specification document  - Windows Location Sensor Application Note  - U-Center GNSS evaluation software for Windows user guide



Driver Downloads:

- Windows 10 / 11 driver installation guide  - Windows 10 / 11 Location Sensor driver download   - Windows 7 driver download   - Windows 7 driver installation guide  - Linux driver installation guide  - Android connection instruction



Software Downloads:

- U-Center
